A collaborative robot solution built on self-developed harmonic reducers and highly integrated joint modules, delivering up to 180 Nm/kg torque density across 2–20 kg payloads.
Torque Density
Arcsec Repeatability
Payload

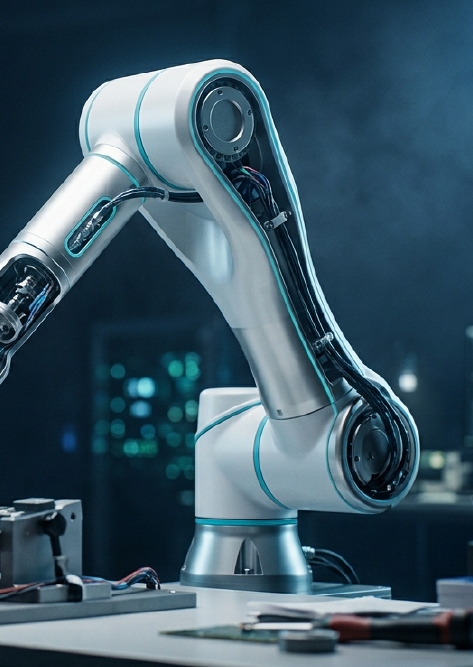

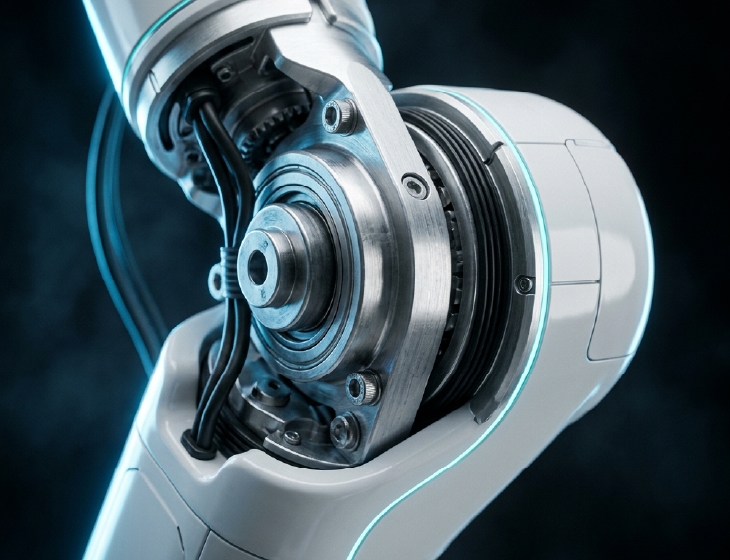

The Haozhi Cobot Solution redefines collaborative robotics by building system performance from the core outward. Instead of relying on disconnected motion components, it integrates self-developed harmonic reducers, highly integrated joint modules, and collaborative robot platforms into a coordinated architecture. At its core, each joint module combines motor, reducer, driver, encoder, torque sensor, and brake, while the harmonic reducer delivers precision transmission via an SP tooth profile with over 33% gear engagement. This enables compact design, high torque density, precision positioning, and simplified system integration. The DCR Series covers payloads from 2 kg to 20 kg, reaches from 625 mm to 1800 mm, and repeat positioning accuracy of up to ±0.05 mm.

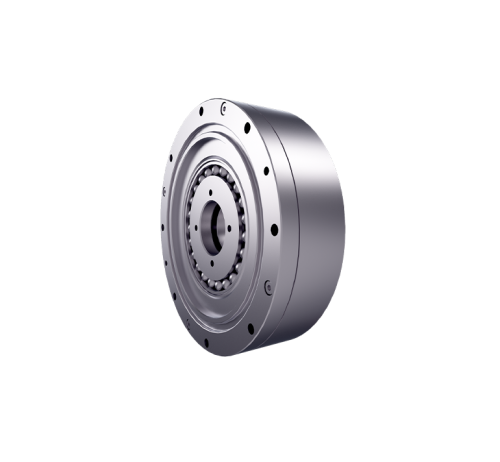

More than 33% gear engagement increases transmission contact, supporting smoother motion and higher load capacity in collaborative robot joints.

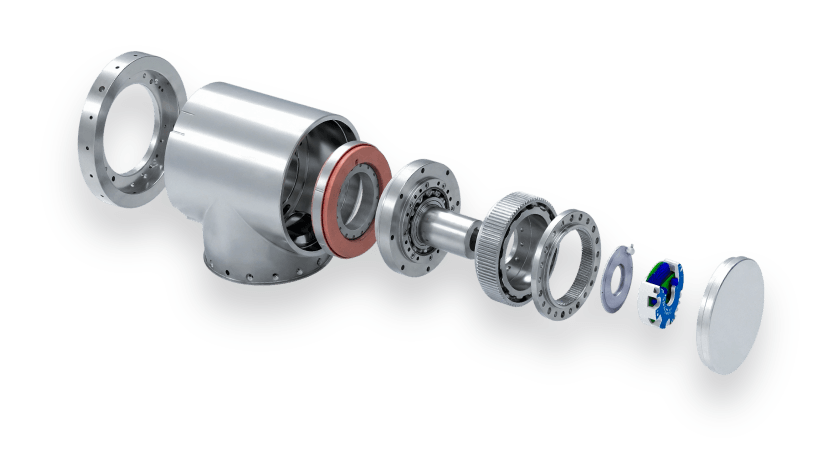

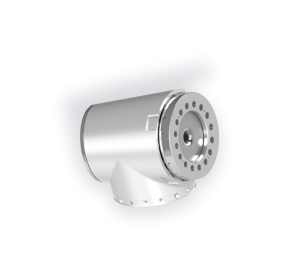

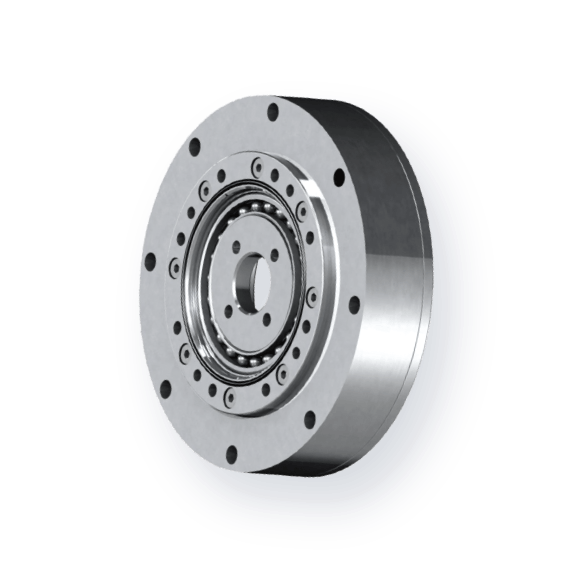

Motor, reducer, driver, encoder, torque sensor, and brake are integrated, reducing module volume by 30% versus conventional harmonic modules.

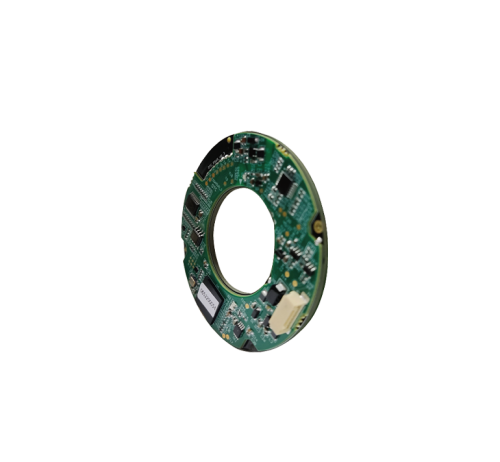

High-precision encoders and near-zero-backlash harmonic transmission support repeat positioning accuracy below 10 arcsec for demanding automation tasks.

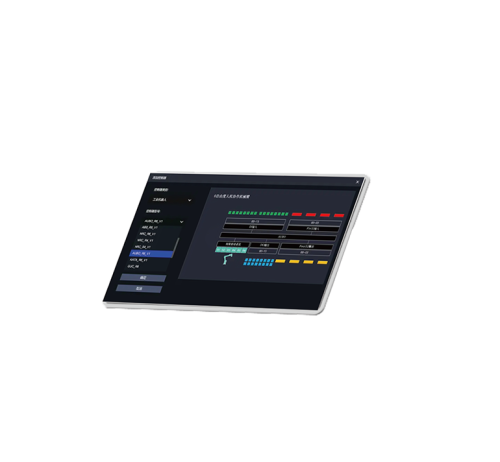

FOC and compliance algorithms support position, speed, and torque control, while onboard STO and SBC functions support collaborative operation.
We combine proven, reliable components with tailored mechanical and electrical interfaces to solve your exact drive system requirements. By perfectly matching standard reliability with individual customization, we deliver your customer-specific solutions quickly and flexibly.
Self-developed reducers and joint modules reduce integration complexity, with the joint module achieving 180 Nm/kg torque density.
Harmonic transmission accuracy reaches ≤50 arcsec, while joint repeat positioning accuracy is below 10 arcsec.
Joint modules support at least 15,000 hours of continuous operation without precision drift, backed by full-process manufacturing control.
